Start here

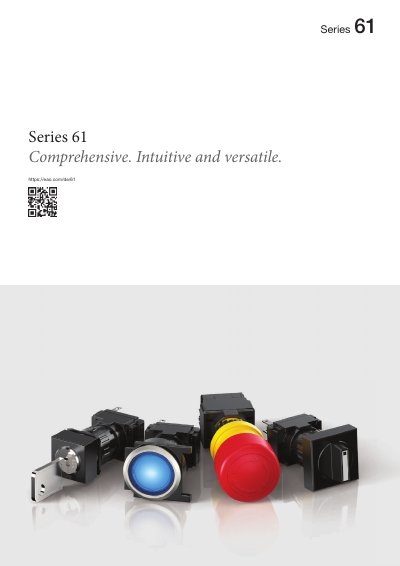

EAO Series 61 Pushbuttons and Switches Product Catalog
This document serves as a comprehensive overview of the EAO Series 61, highlighting its key advantages such as wide modularity, modern design, and international approvals. It covers typical application areas including machinery, measurement engineering, process engineering, public transportation, and laboratory instruments.
The catalog details various components within the series, including pushbuttons (flush and raised), illuminated pushbuttons, mushroom-head pushbuttons, selector switches, keylock switches, indicators, buzzers, potentiometers, stop switches, and emergency stop switches. It provides specific technical data, ratings, mounting cut-out dimensions, terminal types, material specifications, and wiring diagrams for each component type.
EAO Series 61 specifications
| Wide, modular Series | Yes |
|---|---|
| Internationally recognised approvals | CB (IEC 61058), CSA, ENEC, CQC, CENELEC, DNV GL, GOST, UL, NFF |
| Conformities | CE, LVD, RoHS |
| Voltage rating | 42 VAC (100 mA) |
| Current rating | 250 VAC (5 A) |
| Housing material | Aluminium, Plastic |
Source: EAO Series 61 Pushbuttons and Switches Product Catalog
All EAO Series 61 documents by type
Questions answered in these manuals
What are the typical application areas for Series 61?
The series is used in machinery, measurement and control engineering, process engineering (air conditioning systems and heating technology), public transportation, and laboratory instruments.
From: EAO Series 61 Pushbuttons and Switches Product Catalog
What are the available mounting cut-out sizes?
The available mounting cut-outs include Ø 16.2 mm, Ø 22.3 mm, 21.2 mm x 21.2 mm, and 21.2 mm x 27.2 mm.
From: EAO Series 61 Pushbuttons and Switches Product Catalog
What are the front dimensions of the Series 61 units?
The units are available in 24 × 24 mm, 24 mm diameter, 18 × 24 mm, 18 × 18 mm and 18 mm diameter sizes.
How many keys are supplied with each keylock switch?
Two keys are supplied with each keylock switch.
What IP protection rating do the Series 61 switches have?
They are protected against spray water with an IP65 rating.
From: EAO Series 61 Switches and Indicators Product Handbook
