This document describes the features and characteristics of the 61 series switches and indicators, including pushbuttons for standard and flush mounting, accessories/spare parts, circuit drawings, etc.

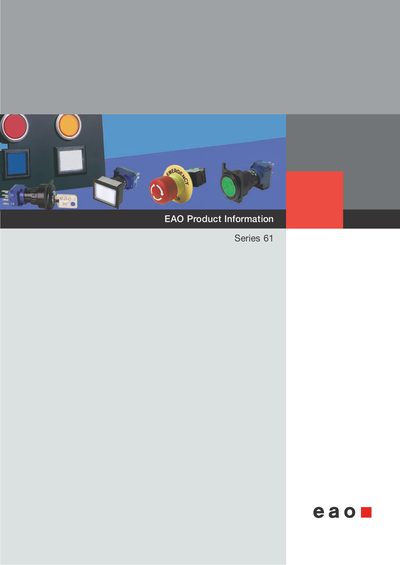

This handbook describes the EAO Series 61 range of switches, illuminated push‑buttons, selector switches, key‑lock switches and emergency‑stop switches. It covers general notes, mounting methods, lens options, illumination types, marking options and technical data.
The document includes product assembly diagrams, part numbers, dimensions, wiring and circuit drawings, as well as typical application examples and ordering information for accessories and spare parts.
| IP rating | IP65 |
|---|---|
| Mounting torque | 50 Nm |
| Illumination lamp | Midget‑grooved T 1 3/4 incandescent (6‑48 V, 1.2 W) |
| LED illumination | Midget‑grooved T 1 3/4 Multi‑LED (6, 12, 24, 48 V) |
| Lens diameter | 19.7 mm |
They are protected against spray water with an IP65 rating.
