Key facts
- Brand
- DiGiCo
- Model
- SD7
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-06
Start here

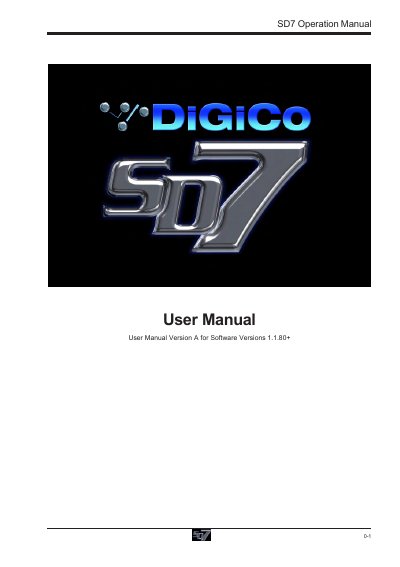

Digico SD7 Operation Manual
This document is the Operation Manual for the Digico SD7 Digital Console system. It details the user interface layout, including the worksurface, layers, and control surface usage. The guide explains how to configure hardware connections, create ports for Optocore Racks, and manage audio I/O panels.
The manual covers essential operational tasks such as configuring sessions, saving and loading settings, and managing audio mixing. It provides instructions on routing inputs and outputs, setting up pre-outs, naming channels, and applying channel processing effects like Dynamic EQ and Multiband Dynamics. Additionally, it describes the functionality of the LCD screen, solo setup, and network mirroring features.
DiGiCo SD7 specifications
| New Internal Effects (Reverbs) | 16 stereo FPGA reverbs |
|---|---|
| Other Available Effects | Up to 32 other effects |
| Output Channel EQ Bands | 8 EQ bands (4 pre-insert, 4 post-insert) |
All DiGiCo SD7 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What software versions does this manual cover?
This manual is Version A and applies to Software Versions 1.1.80 or higher.
Who must perform repairs on the SD7 product?
All repair and service of the SD7 product should be undertaken by Digico UK Ltd or its authorised agents.
What software version is required for MACH 2 features?
The document specifies that these details apply to SD7 software versions 1.6.131 and later.
Can Output Channels use Filters?
No, HPF and LPF have been removed from Output Channels to allow processing for new EQ bands.
