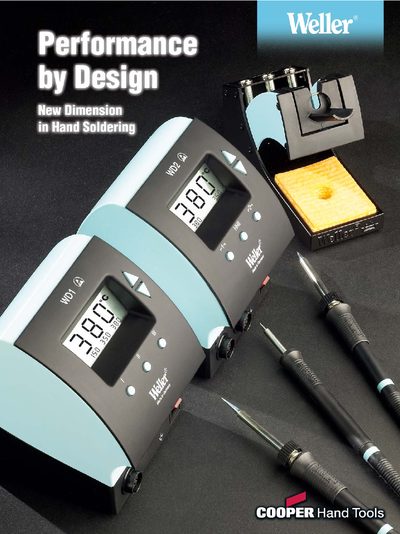

COOPER TOOLS WELLER WD 1 WD 1000 WD 2
The Weller WD series includes microprocessor‑controlled soldering stations (WD 1, WD 1000, WD 2, WD 1M, WD 2M) designed for industrial production, repair and laboratory use. Each station features a large LCD display, selectable temperature settings, antistatic safety rests and optional USB interfaces for calibration, configuration and data logging.
The stations are offered with a range of accessories such as soldering pencils, desoldering tweezers, thermal wire strippers, pre‑heating plates, solder baths and USB extension modules. Technical specifications for dimensions, power input, temperature control and safety classes are provided for each model.
Cooper WD1 specifications
| Dimensions (WD 1 control unit) | 134 × 108 × 147 mm (L × W × H) |
|---|---|
| Mains voltage | 230 V / 50 Hz |
| Power input (WD 2) | 160 W |
| Protection class | I (control unit), III (soldering iron) |
| Temperature range | 150 °F – 850 °F (50 °C – 450 °C) |
| Temperature accuracy | +17 °F (+9 °C) |
| Temperature stability | +9 °F (+5 °C) |
| Leak resistance of soldering tip | < 2 Ω |
| Leak voltage of soldering tip | < 2 mV |
All Cooper WD1 documents by type
Questions answered in these manuals
What temperature range can the WD soldering stations operate in?
The stations provide temperature control from 150 °F to 850 °F (50 °C to 450 °C).
Do the WD stations support a USB interface?
Yes, each WD station includes a USB interface for data logging, calibration, configuration and ISO applications.
How many programmable presets do the WD1 and WD2 stations have?
Each station has three independent programmable preset buttons.
What is the temperature range of the WD stations?
The stations operate from 150 °F to 850 °F.
