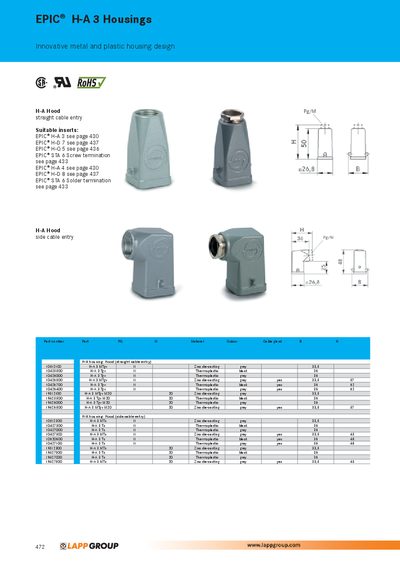

CONTACT CONNECTORS ors EPIC H-A 3 Housings Shortcut: PL493-1 - LAYOUT: Layout17b EPIC H-A 3 Housings Innovative metal plastic housing design
The LAPP EPIC H-A 3 connector series provides compact housings for applications where space is limited. It offers screw termination with straight cable entry and is compatible with a range of EPIC inserts such as H-D 7, H-Q 5, and STA 6.
Key specifications include a rated voltage of 400 V IEC (600 V UL/CSA), rated current up to 23 A IEC (104 A UL, 10 A CSA), contact resistance of 1.5‑4 mΩ, and operation over –40 °C to +100 °C (temporary up to 125 °C). The connectors feature 3 + PE contacts for the H-A 3 version and 4 + PE for the H-A 4 version.
Contact EPIC H-A 3 specifications
| Rated voltage | 400 V IEC, 600 V UL/CSA |
|---|---|
| Contact resistance | 1.5‑4 mΩ |
| Termination method | Screw termination 0.5‑2.5 mm² |
| Temperature range | -40 °C to +100 °C (temporary up to 125 °C) |
| Pollution degree | 3 (DIN EN 61984) |
| IP protection | IP54 minimum |
All Contact EPIC H-A 3 documents by type
Questions answered in these manuals
What is the rated voltage of the EPIC H-A 3 connector?
It is rated at 400 V IEC and 600 V UL/CSA.
What termination method is used for the EPIC H-A series?
Screw termination is used, suitable for conductors 0.5‑2.5 mm².
What is the contact resistance of the EPIC H‑A series?
The contact resistance is specified as 1.5 to 4 mΩ.
What temperature range can the connector operate in?
It can operate from –40 °C to +100 °C, with temporary operation up to 125 °C.
