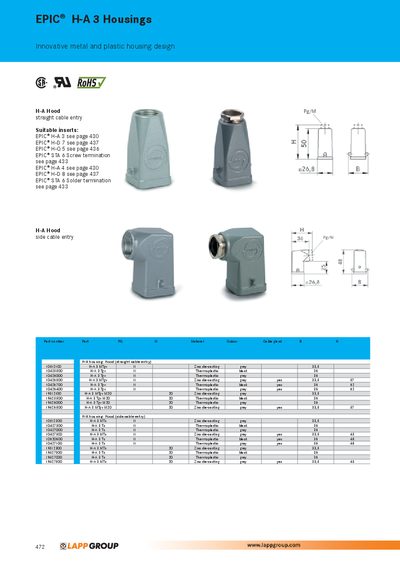

EPIC® H-A 3 Modular metal and plastic housings designed for various cable entry.
This handbook provides an overview of the EPIC H-A 3 connector family, including hood and surface‑mount base housings, suitable inserts, and mechanical dimensions. It describes the screw‑termination variants (H‑A 3 and H‑A 4) and their typical applications in machine and control technology.
The document lists electrical ratings such as IEC 400 V, UL 600 V, and CSA 600 V, contact resistance of 1.5‑4 mΩ, temperature range from –40 °C to +100 °C (temporary up to 125 °C), and other key parameters like IP 54 protection and 3+PE / 4+PE contact counts.
| Rated voltage (IEC) | 400 V |
|---|---|
| Rated voltage (CSA) | 600 V |
| Rated current (CSA) | 10 A |
| Contact resistance | 1.5‑4 mΩ |
| Temperature range (operating) | -40 °C to +100 °C (temporary up to 125 °C) |
| Pollution degree | 3 (DIN EN 61984) |
| IP protection | IP 54 |
| Number of contacts (H‑A 3) | 3+PE |
| Number of contacts (H‑A 4) | 4+PE |
| Screw termination range | 0.5 mm – 2.5 mm |
| Mechanical operation cycles | 100 |
The contact resistance is specified as 1.5 to 4 mΩ.
It can operate from –40 °C to +100 °C, with temporary operation up to 125 °C.
The H‑A 3 version provides three contacts plus a protective earth (3+PE).
