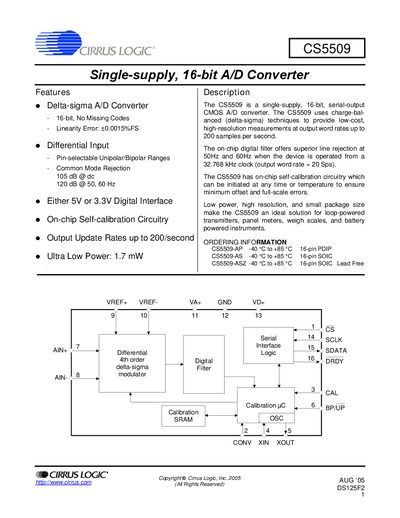

Cirrus Logic CS5509 Datasheet
The CS5509 is a single‑supply, 16‑bit delta‑sigma analog‑to‑digital converter with serial output. It offers low power consumption, on‑chip self‑calibration, and selectable unipolar/bipolar input ranges for loop‑powered transmitters, panel meters, weigh scales, and battery‑powered instruments.
The document provides detailed analog and digital characteristics, switching timing, package dimensions, environmental specifications, and ordering information for the AP, AS, and ASZ variants.
Cirrus Logic CS5509 specifications
| Resolution | 16‑bit |
|---|---|
| Maximum Sample Rate | 200 samples per second |
| Power Dissipation | 1.7 mW |
| Common Mode Rejection | 105 dB |
| Input Capacitance | 15 pF |
Source: Cirrus Logic CS5509 Datasheet
All Cirrus Logic CS5509 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for the CS5509‑AP version?
The CS5509‑AP operates from –40 °C to +85 °C.
What is the high‑level input voltage for the 5 V digital interface?
The high‑level input voltage (XIN) is specified as 3.5 V.
What is the maximum sample rate of the CS5509?
The CS5509 can update its output at up to 200 samples per second.
From: Cirrus Logic CS5509 Single-supply 16-bit A/D Converter Datasheet
What is the power dissipation of the CS5509?
Typical power dissipation is 1.7 mW, with a maximum of 2.25 mW.
From: Cirrus Logic CS5509 Single-supply 16-bit A/D Converter Datasheet
