Key facts
- Brand
- BOSS
- Model
- CE-3
- Category
- Other Electronics
- Industry
- Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-10
Start here

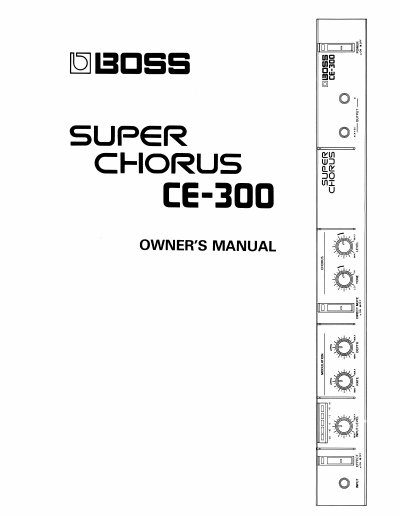

Roland CE-300 Super Chorus Owner's Manual
This document is the Owner's Manual for the Roland CE-300 Super Chorus effect unit. It details the front and rear panel controls, including the Effect Switch, Input Level Control, Modulation Rate and Depth knobs, and Direct Mute Switch. The manual explains how to connect the unit to instruments, mixers, and amplifiers, noting that a microphone cannot be directly connected to the input jack.
Read onlineBOSS CE-3 specifications
| S/N Ratio | more than 90 dB (IHF-A) |
|---|---|
| Power Consumption | 13mA at 9V |
| Input Impedance | 1MΩ (FET Input) |
| Maximum Output Level | 0dBm (100 Hz), 10 dBm (1 kHz) |
| Dimensions | 125(W) x 55(H) x 125(D) mm |
| Weight | 400g |
All BOSS CE-3 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can a microphone be directly connected to the input jack?
No, the CE-300 has a rated input level of -20dBm, so a microphone cannot be directly connected to the Input Jack.
What happens if the signal exceeds the maximum input level?
If the signal exceeds the maximum input level of +12dBm, the created sound may still be distorted even if the input level is set to low.
What type of battery is required for the CE-3?
The CE-3 requires a 9-volt battery.
What is the function of the STEREO MODE switch?
It allows the user to select between Mode I (stereo chorus) and Mode II (mono chorus).
