Key facts
- Brand
- AUDIOPHILE
- Model
- Audiophile 192
- Category
- Other Computer Accessories
- Documents
- 2
- Languages
- EN
- Last added
- 2012-07-03
Start here

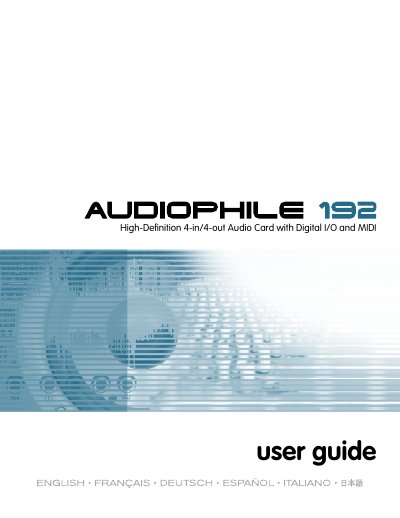

M-Audio Audiophile 192 User Guide
User Manual 88 pages · 2.3 MB · EN
The M-Audio Audiophile 192 is a professional quality audio and MIDI interface based on a low-profile PCI card. It offers two analog inputs and four analog outputs, as well as sixteen channels of MIDI in and out, supporting internal sampling rates from 8kHz up to 192kHz.
Read onlineAudiophile 192 specifications
| Frequency response | 20Hz – 80kHz |
|---|---|
| Audio interface resolution | 24-bit, 192kHz |
| Dynamic range | 113dB |
| Internal sample rates | 8kHz to 192kHz |
| External sync rates | 32kHz to 192kHz |
| Analog inputs | Two balanced/unbalanced |
| Analog outputs | Four balanced/unbalanced |
| MIDI channels | Sixteen channels |
All Audiophile 192 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the minimum system requirements for Windows XP?
A Pentium 3 processor at 700 MHz or higher, 256 MB RAM, DirectX 9.0b or higher, and an available PCI slot.
What are the minimum system requirements for Mac OS X?
A Macintosh G4 at 733 MHz or higher, 512 MB RAM, Mac OS X Jaguar (10.2.8) or Panther (10.3.4), and an available PCI slot.
What are the minimum system requirements for Windows?
For 192kHz operation, a Pentium 3 – 700 MHz or higher with 256 MB RAM is required.
What are the minimum system requirements for Macintosh?
A Macintosh G4 733 MHz or higher with 512MB RAM is required.
