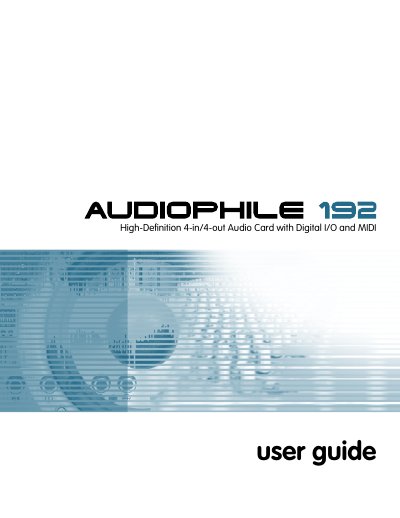

The 'High-Definition 4-in/4-out Audio Card with Digital I/O and MIDI user guide' is a user guide for the M-Audio Audiophile 192 PCI interface, describing its features and capabilities.
The M-Audio Audiophile 192 is a professional quality audio and MIDI interface based on a low-profile PCI card. It offers four analog inputs and four analog outputs, along with independent S/PDIF coaxial I/O and sixteen channels of MIDI. The device supports internal sampling rates from 8kHz up to 192kHz and can sync to external devices via S/PDIF at rates from 32kHz to 192kHz. It runs under Windows XP, Windows 2000, and Mac OS X, including ultra-low latency drivers for WDM, ASIO II, GSIF II, and Mac CoreAudio.
| Frequency response | 20Hz – 80kHz |
|---|---|
| Audio resolution | 24-bit, 192kHz |
| Dynamic range | 113dB |
| Internal sample rates | 8kHz to 192kHz |
| External sync rates | 32kHz to 192kHz |
| Analog inputs | Two balanced/unbalanced |
| Digital I/O | Stereo S/PDIF inputs and outputs |
| MIDI I/O | Sixteen channels |
For 192kHz operation, a Pentium 3 – 700 MHz or higher with 256 MB RAM is required.
A Macintosh G4 733 MHz or higher with 512MB RAM is required.
Yes, it includes ultra-low latency ASIO II drivers.
Yes, it can sync to external devices via S/PDIF at sampling rates from 32kHz to 192kHz.
