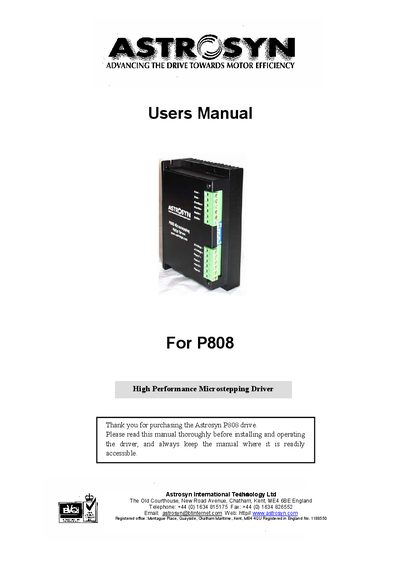

Astrosyn P808 High Performance Microstepping Driver User Manual
The Astrosyn P808 is a high-performance microstepping driver designed to drive 2-phase and 4-phase hybrid stepping motors with currents up to 7.7A. It utilizes advanced bipolar constant-current chopping technology to provide precise control, low noise, and reduced motor heating compared to traditional drivers.
Read onlineAstrosyn P808 specifications
| Drive current | Adjustable from 2.8A to 7.7A |
|---|---|
| Supply voltage | +24V to +90Vdc |
| Step resolution | Microstepping to 51,200 steps/revolution |
| Chopping frequency | Inaudible 20khz |
| Pulse signal speed control | Maximum frequency 300kKHz |
Source: Astrosyn P808 High Performance Microstepping Driver Specification Sheet
All Astrosyn P808 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum supply voltage for the P808?
The driver can operate within +24V to +90VDC, though a theoretical output of no more than +85V is suggested.
From: Astrosyn P808 High Performance Microstepping Driver User Manual
Can I use an unregulated power supply?
Yes, unregulated power supplies are preferred due to their ability to withstand current surge.
From: Astrosyn P808 High Performance Microstepping Driver User Manual
