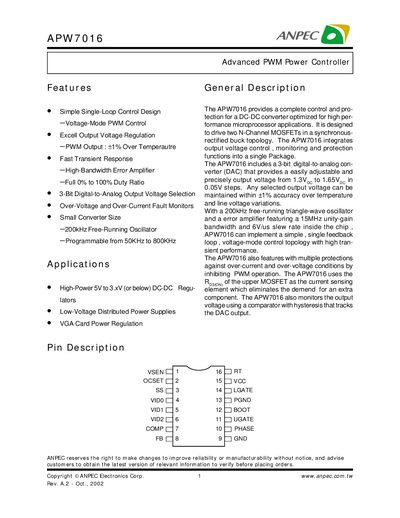

ANPEC APW7016 Advanced PWM Power Controller User Manual
The APW7016 is an advanced PWM power controller designed for high‑performance microprocessor applications. It uses a voltage‑mode PWM control loop, a 200 kHz free‑running oscillator, and a high‑bandwidth error amplifier to deliver precise output regulation from 1.3 V to 1.65 V.
The manual details pin functions, electrical and thermal characteristics, package options (SOP‑16 and SSOP‑16), and reliability test procedures. It also includes ordering information, handling codes, and customer service contacts for ANPEC Electronics Corp.
ANPEC APW7016 specifications
| Supply Voltage (maximum) | 15 V |
|---|---|
| Output Voltage Range | 1.3 V – 1.65 V |
| PWM Duty Ratio | 0 % – 100 % |
| Programmable Switching Frequency | 50 kHz – 800 kHz |
| DAC Voltage Step | 0.05 V |
| Over‑Voltage Trip | 115 % – 120 % |
| Package Options | SOP‑16, SSOP‑16 |
Source: ANPEC APW7016 Datasheet
