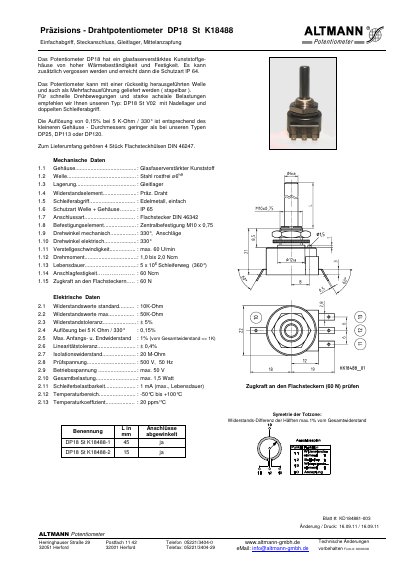

Altmann DP18 St K18488 Precision Wire Potentiometer Datasheet
This document is a technical datasheet for the Altmann DP18 St K18488 precision wire potentiometer. It describes the device as having a glass-fiber reinforced plastic housing, a stainless steel shaft, and a sliding bearing. The unit features a simple access point and plug connection, with an optional potting option for IP 64 protection. This manual is written in German.
Read onlineAltmann DP18 specifications
| Housing Material | Glass-fiber reinforced plastic |
|---|---|
| Shaft Material | Stainless steel |
| Bearing Type | Sliding bearing |
| Standard Resistance Values | 10 kOhm |
| Maximum Resistance Values | 50 kOhm |
| Resolution (at 5 kOhm / 330°) | 0.159% |
| Linearity Tolerance | ±0.4% |
| Insulation Resistance | 20 MOhm |
| Test Voltage | 500 V, 50 Hz |
| Operating Voltage | max. 50 V |
| Total Load | max. 1.5 Watt |
| Temperature Range | -50°C to +100°C |
| Temperature Coefficient | 20 ppm/°C |
| Mechanical Rotation Angle | 330° |
| Electrical Rotation Angle | 330° |
| Maximum Adjustment Speed | 60 rpm |
| Torque | 1.0 to 2.0 Ncm |
| Life Expectancy | 5 x 10^6 slider paths |
| Mounting | Central M10 x 0.75 |
