DP18 is a precision wire potentiometer with a glass-reinforced plastic housing that is heat-resistant and durable.

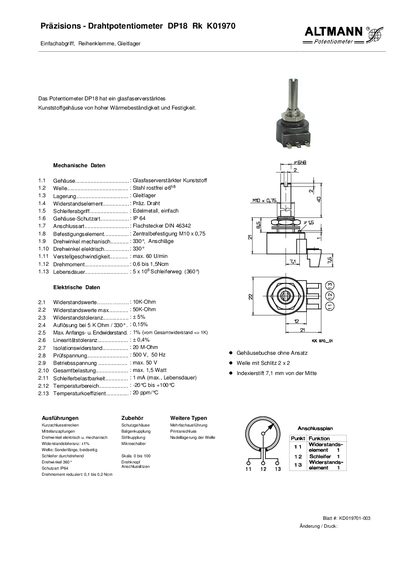

This document provides technical specifications for the Altmann DP18 Rk K01970 precision wire-wound potentiometer. The device features a reinforced plastic housing, a stainless steel shaft, and a simple contact design with a DIN 46342 socket connection. This manual is written in German.
| Housing Material | Glasfaserverstarkter Kunststoff |
|---|---|
| Shaft Material | Stahl rostfrei |
| Resistance Element | Praz. Draht |
| Contact Type | Edelmetall, einfach |
| Protection Class | IP64 |
| Connection Type | DIN 46342 |
| Mounting | Zentralbefestigung M10 x 0,75 |
| Mechanical Rotation Angle | 330° |
| Electrical Rotation Angle | 330° |
| Maximum Speed | 60 U/min |
| Torque | 6 bis 1,5Ncm |
| Lifespan | 5 x 10^6 Schleiferweg |
| Resistance Values | 10K-Ohm, 50K-Ohm |
| Resistance Tolerance | 5% |
| Resolution | 0,15% |
| Linearity Tolerance | 0,4% |
| Total Load | 1,5 Watt |
The maximum total load is rated at 1.5 Watts.
The maximum switching speed is 60 revolutions per minute.
The mechanical rotation angle is 330 degrees.
