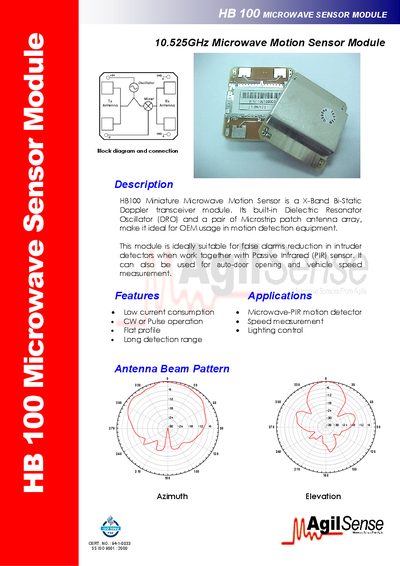

AgilSense HB100 Microwave Sensor Module User Manual
The HB100 is a miniature X‑Band bi‑static Doppler transceiver module that includes a dielectric resonator oscillator (DRO) and a microstrip patch antenna. It is intended for motion detection applications such as infrared alarm reduction, auto‑door opening, vehicle speed measurement, lighting control, and long‑range detection.
The document provides a connection diagram, mechanical dimensions, electrical specifications, and safety notes. All measurements are taken with a +5 VDC supply, CW operation, and an ambient temperature of +25 °C unless otherwise noted.
AgilSense HB100 specifications
| Frequency Setting | 10.520 – 10.530 GHz |
|---|---|
| Radiated Power (EIRP) | 12 – 20 dBm |
| Spurious Emission | -0.3 dBm |
| Settling Time | 3 – 6 µs |
| Received Signal Strength | 200 µV p‑b |
| Noise | 5 µV rms |
| Antenna Beam‑width (Azimuth) | 80 ± 5° |
| Antenna Beam‑width (Elevation) | 40 ± 5° |
| Supply Voltage | 4.75 – 5.25 VDC |
| Current Consumption | 30 – 40 mA |
| Pulse Repetition Frequency | 2 kHz |
| Pulse Width | 4 – 10 µs |
| Operating Temperature | -15 °C to 55 °C |
| Weight | 8 – 9 g |
All AgilSense HB100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the HB100 module require?
The module operates from 4.75 V to 5.25 V DC.
How much current does the HB100 draw during operation?
Typical current consumption is between 30 mA and 40 mA.
