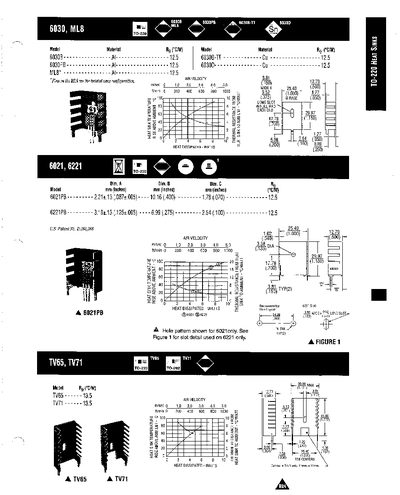

Aavid Thermaloy 6030, ML8, 6021, 6221, TV65, TV71 Datasheet
This datasheet lists the key thermal performance parameters for Aavid Thermaloy products, including thermal resistance (Ro and Rg), heat dissipation limits, and air‑velocity test conditions. Dimensions and hole‑layout details for each model are also provided.
The document covers several model families (6030, ML8, 6021, 6221, TV65, TV71) and includes patent information, recommended slot configurations, and maximum temperature ratings for proper thermal management in electronic assemblies.
AAVID TV71 specifications
| Heat dissipated (W) | 200 |
|---|---|
| Air velocity (m/sec) | 381 |
| Maximum temperature (°C) | 30.00 |
Source: Aavid Thermaloy 6030, ML8, 6021, 6221, TV65, TV71 Datasheet
All AAVID TV71 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the heat dissipation rating for the 6030 model?
The 6030 model can dissipate up to 200 W of heat.
From: Aavid Thermaloy 6030, ML8, 6021, 6221, TV65, TV71 Datasheet
What air velocity is used in the thermal tests?
The tests were performed at an air velocity of 381 m/sec.
From: Aavid Thermaloy 6030, ML8, 6021, 6221, TV65, TV71 Datasheet
What is the thermal resistance of the TV1505 heatsink?
The TV1505 heatsink has a thermal resistance of 17 °C/W.
From: AAVID HF20, HF35, TV1500, TV1505, TV65, TV71 Heatsink Product Datasheet
What are the dimensions of the HF20 heatsink?
The HF20 heatsink measures L=20, P=21, Q=13° CW.
From: AAVID HF20, HF35, TV1500, TV1505, TV65, TV71 Heatsink Product Datasheet
