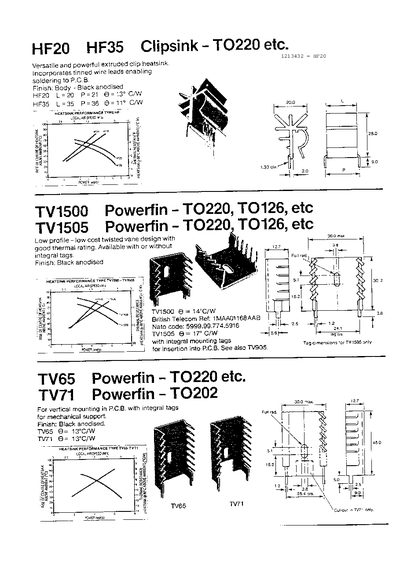

AAVID HF20, HF35, TV1500, TV1505, TV65, TV71 Heatsink Product Datasheet
AAVID offers a range of extruded clip and powerfin heatsinks—including the HF20, HF35, TV1500, TV1505, TV65, and TV71 models—designed for PCB mounting. All parts feature a black anodised finish and are available with optional integral mounting tags for easy installation.
The datasheet lists key dimensions, thermal resistance values and performance figures for each model (e.g., TV1505 17 °C/W, TV65 13 °C/W) measured under specified airflow conditions, helping designers select the appropriate heatsink for their applications.
AAVID TV1505 specifications
| HF20 dimensions | L=20 P=21 Q=13° CW |
|---|---|
| HF35 dimensions | L=35 P=36 O=11° CNW |
| TV1505 thermal resistance | 17 °C/W |
| Finish | Black anodised |
Source: AAVID HF20, HF35, TV1500, TV1505, TV65, TV71 Heatsink Product Datasheet
All AAVID TV1505 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the thermal resistance of the TV1505 heatsink?
The TV1505 heatsink has a thermal resistance of 17 °C/W.
From: AAVID HF20, HF35, TV1500, TV1505, TV65, TV71 Heatsink Product Datasheet
What are the dimensions of the HF20 heatsink?
The HF20 heatsink measures L=20, P=21, Q=13° CW.
From: AAVID HF20, HF35, TV1500, TV1505, TV65, TV71 Heatsink Product Datasheet
