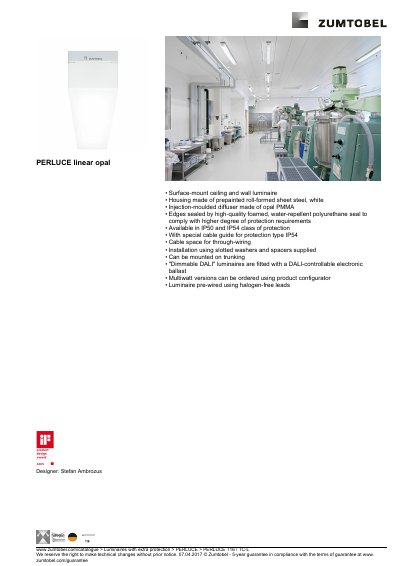

Technical specifications, dimensions, light output and warranty details for the Zumtobel PERLUCE T16 / TC-L surface‑mount luminaire.
The PERLUCE T16 / TC-L is a linear opal surface‑mount ceiling and wall luminaire with a pre‑painted roll‑formed steel housing and an injection‑moulded opal PMMA diffuser. It is available in IP50 and IP54 protection classes and can be mounted on trunking using supplied slotted washers and spacers.
The luminaire is equipped with a DALI‑controllable electronic ballast, offers a luminous flux of 2062 lm, an efficacy of 68 lm/W and a colour rendering index of at least 80. It comes with a 5‑year guarantee and complies with EN ISO 17025:2005 photometric testing standards.
| Protection class | IP54 |
|---|---|
| Dimensions | 1220 × 120 × 91 mm |
| Weight | 2.63 kg |
| Luminous flux | 2062 lm |
| Efficacy | 68 lm/W |
| Colour Rendering Index (CRI) | ≥ 80 |
| Input power | 30.5 W |
| Light source | 1 × T16 / 28 W |
| Ballast part number | 22185147 PC 1x14-35 T5 PRO |
| Warranty | 5‑year guarantee |
The luminaire is available in IP54 protection class (and also IP50).
It measures 1220 mm × 120 mm × 91 mm and weighs 2.63 kg.
Zumtobel provides a 5‑year guarantee for the PERLUCE T16 / TC-L luminaire.
