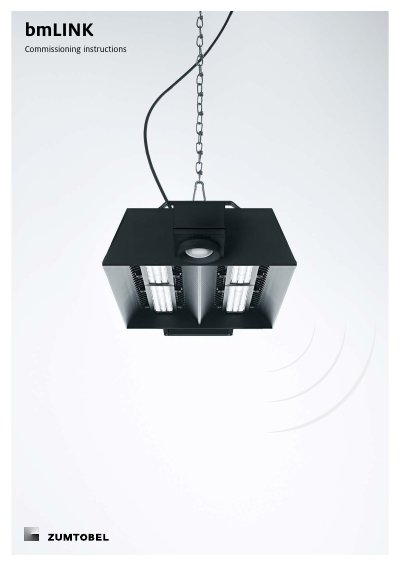

Commissioning instructions for the Zumtobel bmLINK Bluetooth system to set up and configure DALI‑compatible lighting networks.
These instructions guide technicians through the commissioning and configuration of the bmLINK system, which consists of Bluetooth transmitters and receivers that create a Bluetooth mesh network for DALI‑compliant lighting control. The document covers the use of the bmLINK web application and the bmLINK Tool iOS app, including project creation, zone setup, device assignment, and profile configuration.
The guide also provides maintenance procedures, troubleshooting tips, and details on integrating bmLINK with lighting management systems such as LITECOM, as well as calibration of ambient light sensors and handling of emergency luminaires.
| Maximum DALI loads per output | 25 loads / 50 mA |
|---|---|
| Maximum DALI line length | 100 m (2×0.50 mm²), 150 m (2×0.75 mm²), 300 m (2×1.50 mm²) |
| Software versions referenced | bmLINK Tool iOS app v1.27, bmLINK web application v202007 |
The instructions are aimed at technicians who need to commission and configure previously installed bmLINK devices and set up a Bluetooth mesh network for lighting control.
A bmLINK device can control up to 25 DALI loads or 50 mA per DALI‑compliant output.
The instructions are based on bmLINK Tool app version 1.27 for iOS and bmLINK web application version 202007.
