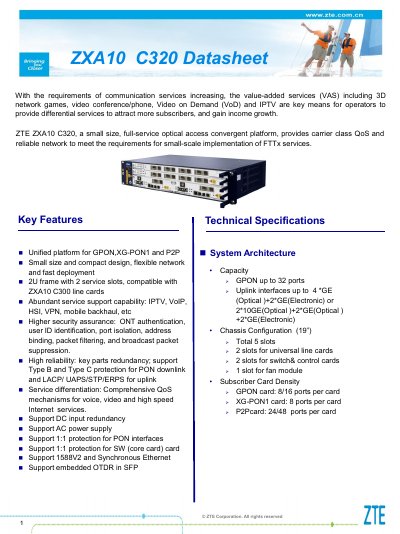

The ZTE ZXA10 C320 datasheet provides technical specifications, features, and dimensions of the compact multi‑service optical access platform.
The ZTE ZXA10 C320 is a small‑sized, full‑service optical access convergent platform designed for FTTx deployments. It supports GPON, XG‑PON1 and P2P technologies and offers a wide range of services such as IPTV, VoIP, VPN and mobile backhaul.
Key specifications include up to 32 GPON ports, multiple uplink options (up to 4×GE optical, 2×GE electronic or 2×10GE optical), a 2U chassis with five slots, and environmental ratings of –40 °C to 65 °C with humidity up to 95 %. The device can be powered by DC –48 V/–20 % (or –60 V/–20 %) or AC 100‑240 V.
| GPON ports | up to 32 |
|---|---|
| Uplink interfaces | up to 4×GE (Optical) + 2×GE (Electronic) or 2×10GE (Optical) + 2×GE (Optical) + 2×GE (Electronic) |
| Chassis dimensions (19" shelf) | 86.1 mm H × 482.6 mm W × 270 mm D |
| Operating temperature | -40 °C to 65 °C |
| Power supply options | DC -48V+/‑20%, -60V+/‑20%; AC 100‑240V |
It supports up to 32 GPON ports.
The device operates from –40 °C to 65 °C, with humidity between 5 % and 95 % and air pressure from 70 kPa to 106 kPa.
It can be powered by DC –48 V (±20 %) or –60 V (±20 %) and by AC 100 V to 240 V.
