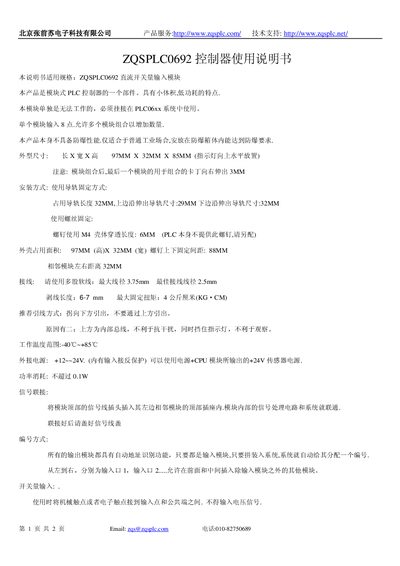

This manual explains installation, wiring, specifications and operation of the ZQSPLC0692 DC switch input module for PLC systems.
The ZQSPLC0692 is a modular PLC controller input module that provides eight DC switch inputs. It is designed for use within a PLC06xx system and must be mounted on a rail or fixed with screws. The module is compact, low‑power and intended for ordinary industrial environments, with optional placement in explosion‑proof enclosures.
The document covers mechanical dimensions, mounting methods, wiring guidelines, power requirements, temperature limits, signal connections, addressing, and input specifications. It also provides details on recommended wire sizes, torque values, and built‑in EMC filtering for reliable operation. This manual is written in Chinese.
| Number of input points | 8 |
|---|---|
| Dimensions (L×W×H) | 97 mm × 32 mm × 85 mm |
| Rail length occupied | 32 mm |
| Screw penetration length (M4) | 6 mm |
| Maximum wire gauge | 3.75 mm |
| Recommended wire gauge | 2.5 mm |
| Strip length | 6‑7 mm |
| Maximum fixing torque | 4 kg·cm |
| Operating temperature range | -40 °C to +85 °C |
| Supply voltage | +12 V to +24 V |
| Power consumption | ≤ 0.1 W |
| Maximum contact resistance when closed | 1 kΩ |
| Input sensor type | NPN output |
The module provides eight DC switch input points.
The module measures 97 mm long, 32 mm wide and 85 mm high.
It operates from –40 °C up to +85 °C.
The module requires a DC supply of +12 V to +24 V.
