ZQS PLC ZQSPLC0692 Controller User Manual
The ZQSPLC0692 is a modular PLC controller input module that provides eight DC switch inputs. It is designed for use within a PLC06xx system and must be mounted on a rail or fixed with screws. The module is compact, low‑power and intended for ordinary industrial environments, with optional placement in explosion‑proof enclosures.
The document covers mechanical dimensions, mounting methods, wiring guidelines, power requirements, temperature limits, signal connections, addressing, and input specifications. It also provides details on recommended wire sizes, torque values, and built‑in EMC filtering for reliable operation. This manual is written in Chinese.
Covers: Specifications · Installation · Wiring · Operating Temperature · Power Supply · Power Consumption

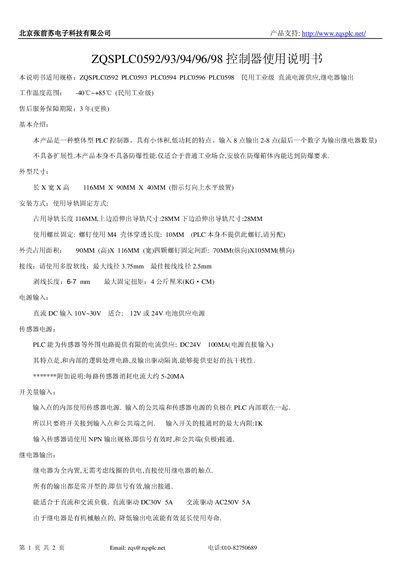

ZQS PLC ZQSPLC0592/93/94/96/98 Controller User Manual
This manual describes the ZQSPLC0592/93/94/96/98 series PLC controller, a compact, low‑power device intended for ordinary industrial environments and to be placed inside explosion‑proof enclosures. The controller offers 8 input points and 2‑8 relay outputs, operates from a DC 10‑30 V supply, and supports sensor power of DC 24 V 100 mA.
The document includes physical dimensions, mounting options (DIN‑rail or screw mounting), wiring recommendations (multi‑strand soft wire, max 3.75 mm, recommended 2.5 mm), power supply details, relay output ratings for DC and AC loads, and safety notes such as using arc‑suppression for inductive loads. A wiring diagram and links to additional resources are also provided. This manual is written in Chinese.
Covers: Introduction · Physical Dimensions · Mounting Options · Wiring Instructions · Power Supply · Sensor Power
Latest ZQS PLC manuals
ZQS PLC ZQSPLC0692 Controller User Manual
User Manual 2 pages · 84 KB · ZHThis manual explains installation, wiring, specifications and operation of the ZQSPLC0692 DC switch input module for PLC systems.
ZQS PLC ZQSPLC0592/93/94/96/98 Controller User Manual
User Manual 2 pages · 94 KB · ZHThe ZQS PLC ZQSPLC0592/93/94/96/98 controller user manual provides specifications, wiring instructions, installation details, and operating guidelines for…
