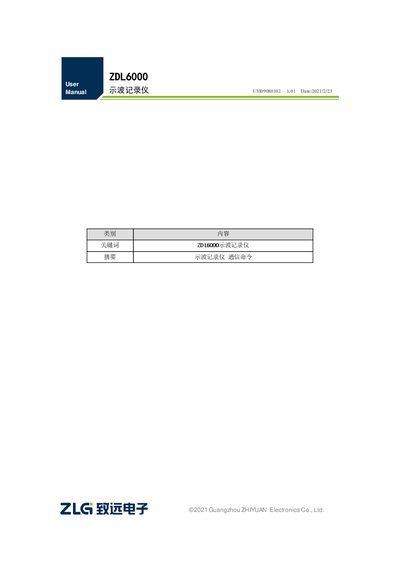

The ZHIYUAN ZDL6000 Oscilloscope Recorder User Manual provides setup, remote control, command set, and data acquisition instructions.
This manual covers the ZHIYUAN ZDL6000 Oscilloscope Recorder, describing its applicable scope, hardware setup, and remote‑control options.
It details the communication interfaces (RS‑232, GPIB, Ethernet), command syntax, and provides examples for acquiring waveform data. This manual is written in Chinese.
| Interface type | D-Sub9-pin |
|---|---|
| Electrical standard | EIA-574 (RS-232) |
| Supported baud rates | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Parity options | NONE, ODD, EVEN, MARK, SPACE |
| Stop bits | 1, 1.5, 2 |
| TCP service port (Ethernet) | 9876 |
Use a DB9 serial cable to link the PC and the recorder, then configure the serial port parameters such as baud rate, data bits, parity and stop bits.
The device listens on TCP port 9876 for remote connections.
Send the command `:WAVeform:STARt` (e.g., `:WAVeform:STARt 0`) to begin transmitting waveform data.
