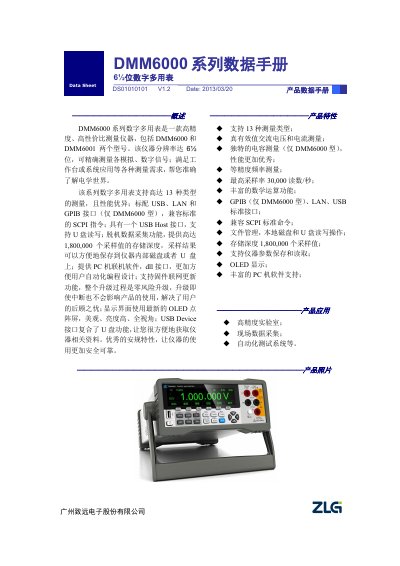

Technical data sheet for the ZHIYUAN DMM6000 series 6½‑digit digital multimeters, covering specifications, interfaces and ordering info.
The ZHIYUAN DMM6000 series includes the DMM6000 and DMM6001 6½‑digit digital multimeters. They provide up to 13 measurement types, high‑resolution OLED display, and extensive data‑capture capabilities for laboratory and field use.
The datasheet details the instrument’s hardware features such as GPIB, LAN, USB interfaces, a maximum sampling rate of 30 kHz, storage depth of 1.8 million samples, and a robust SCPI‑compatible command set for automation. This manual is written in Chinese.
| Display | OLED 256×64 point matrix |
|---|---|
| Power Supply | 110 V 60 Hz / 220 V 50 Hz |
| Power Consumption | 20 VA Max |
| Communication Interfaces | GPIB, 10/100 Mbit LAN, USB2.0 High‑Speed Device, USB2.0 Full‑Speed Host |
| Maximum Sampling Rate | 30 000 samples per second |
| Storage Depth | 1 800 000 samples |
| Measurement Types | 13 types |
The DMM6000 series supports 13 different measurement types.
The DMM6000 model provides GPIB, LAN (10/100 Mbit), USB2.0 High‑Speed Device and a USB Host port.
Yes, the instrument supports network‑based firmware updates through its USB Device or LAN interfaces.
The maximum sampling rate is 30 000 readings per second (30 kHz).
