The Yutong YT‑S950 controller manual provides specifications, installation steps, and usage guidelines for the industrial LED controller.

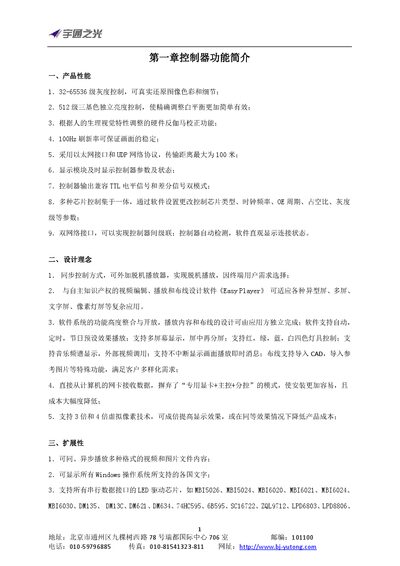

This manual introduces the YT‑S950 controller, detailing its functional features such as 32‑65536 gray levels, 512‑level RGB brightness control, and Ethernet networking with up to 100 m transmission. It also describes the design concept, expandability options, and supported LED driver chips.
The document includes the controller’s physical dimensions, basic electrical parameters, wiring diagrams, installation procedures, and safety precautions for both network and power connections. This manual is written in Chinese.
| Input voltage | AC 220 V |
|---|---|
| Maximum power | 15 W |
| Physical size (L × W × H) | 23.60 cm × 13.50 cm × 4.50 cm |
| Fixed hole spacing | 7.50 cm |
| Maximum pixels per port | 682 |
| Refresh rate | 100 Hz |
| Gray level control range | 32‑65536 levels |
It operates on AC 220 V input.
The controller’s maximum power consumption is 15 W.
It uses Ethernet with UDP protocol, supporting up to 100 m transmission distance.
