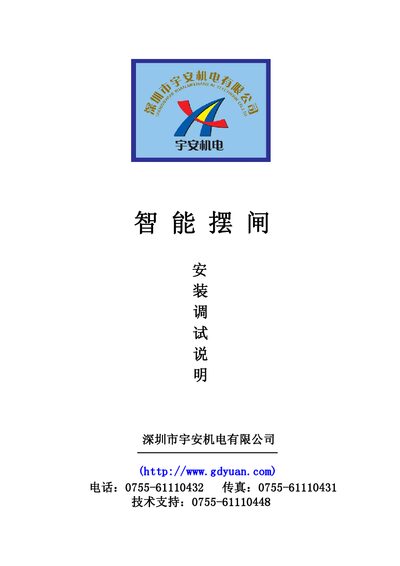

Installation and setup guide for Yuan's YAT6606 series smart turnstile system, covering hardware, wiring, configuration and troubleshooting.
The Yuan Smart Turnstile System provides automated access control with features such as fault self‑check, anti‑pinch, programmable operation, and remote management. It supports multiple models (YAT6606, YAT6608, YAT6602, YAT6601S, YAT6601, YAT6603) and can be configured for single‑ or dual‑direction operation, various input signals, and optional extensions like audio/visual alarms.
This manual details the mechanical and electrical installation steps, wiring diagrams, parameter settings, communication protocols, and common fault analysis. It guides users through site preparation, power and control wiring, menu navigation on the controller, and troubleshooting procedures to ensure reliable operation in indoor or outdoor environments. This manual is written in Chinese.
| Work voltage | AC220 ±10% V / 50 ±10% Hz |
|---|---|
| Drive motor | 24V DC brushed motor |
| Arm length | 500‑900 mm |
| Arm transmission angle | 180° |
| Passage speed | 40 persons/min (normally open), 25‑30 persons/min (normally closed) |
| Gate open/close time | 2‑3 seconds |
| Power‑on to pass state time | 3 seconds |
| Automatic reset after fault | 10 seconds |
| Operating temperature | -10 ℃ to 50 ℃ |
| Relative humidity | ≤90% (non‑condensing) |
The system can handle 40 persons per minute in normally open mode and 25‑30 persons per minute in normally closed mode.
The default automatic reset time after a fault is 10 seconds.
The turnstile accepts dry‑contact signals, 12 V level signals, or RS485 signals.
It uses a 24 V DC brushed motor.
