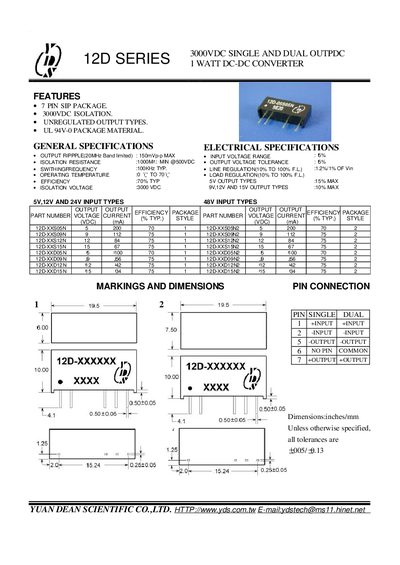

This document describes the features and characteristics of the 12D series 3000VDC single and dual output 1 watt DC-DC converter from YUAN DEAN SCIENTIFIC CO.,LTD.
This document is a technical datasheet for the Yuan Dean Scientific 12D Series of DC-DC converters. The devices are available in a 7-pin SIP package with UL 94V-0 rated materials and provide up to 3000VDC isolation between input and output.
The series includes both single and dual unregulated output types, supporting various input voltages (5V, 12V, 15V, 24V) and output configurations. Key electrical specifications include a typical switching frequency of 100kHz, maximum efficiency of 70%, and an operating temperature range of 0°C to +70°C.
| Package Type | 7 PIN SIP PACKAGE |
|---|---|
| Isolation Voltage | 3000 VDC |
| Output Ripple (20MHz Band limited) | 150mVp-p MAX |
| Switching Frequency | 100KHz TYP. |
| Operating Temperature | 0° TO +70°C |
| Efficiency (5V Output Types) | 70% TYP |
The device provides 3000VDC isolation.
The typical switching frequency is 100KHz.
The maximum output ripple is 150mVp-p.
