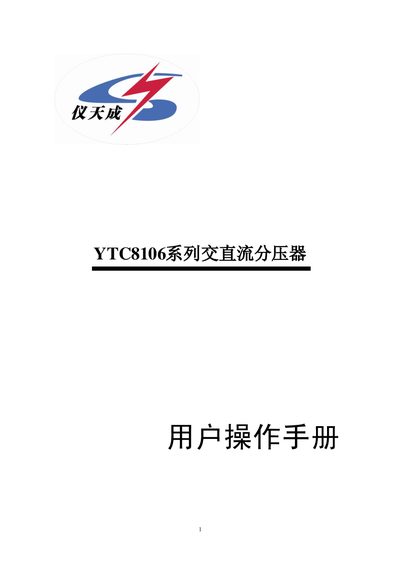

User manual for the YTC8106 series AC/DC voltage divider, covering specifications, operation steps and safety precautions.
The YTC8106 series voltage divider is a high‑voltage measurement device for pulse, lightning and power‑frequency voltages. It features a compact size, light weight, high linearity and true‑RMS measurement capability.
The manual provides technical parameters, step‑by‑step usage instructions, safety distances, maintenance tips and a list of accessories included with the instrument. This manual is written in Chinese.
| Voltage rating (AC) | 50‑300 kV |
|---|---|
| Voltage rating (DC) | 50‑300 kV |
| Measurement method | True RMS |
| Accuracy (AC) | ±1.5 % |
| Division ratio | 1000:1 |
| Operating temperature range | -25 °C to 40 °C |
Select the “LOW” range for voltages under 20 kV and the “HIGH” range for voltages above 20 kV to obtain higher accuracy.
Maintain at least a 5‑6 m clearance; larger voltage models require longer distances (e.g., 2 m for <100 kV, 3 m for 150‑200 kV, 4 m for 300 kV).
The package contains a high‑precision digital display meter, a shielded high‑frequency test cable, a grounding wire, a certificate and a warranty card.
