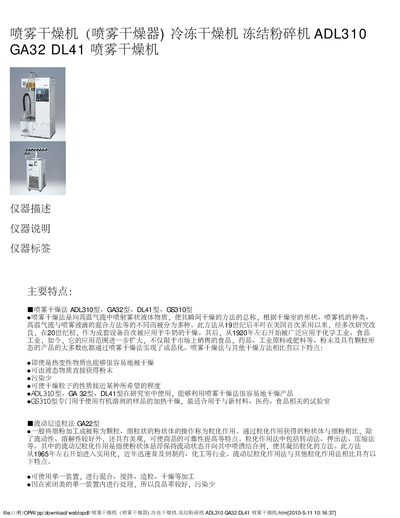

This document describes the features, specifications, and applications of YAMATO spray dryers including models ADL310, GA32, DL41, GS310, and GA22.
The document provides an overview of various YAMATO spray dryer models designed for laboratory use. It explains the principles of spray drying and fluidized bed granulation, highlighting their advantages such as low contamination, suitability for heat-sensitive materials, and the ability to produce homogeneous powders directly from liquids.
Specific sections detail the technical specifications, safety features, standard configurations, and accessories for each model. The ADL310 is described as an economical type with a PID digital temperature regulator, while the GA32 offers multi-functionality including fluidized bed granulation capabilities when equipped with optional attachments. This manual is written in Chinese.
| Water Evaporation Capacity (ADL310/GA32) | Max 1300mL/h |
|---|---|
| Temperature Range (ADL310/GA32) | 40C - 200C |
| Water Evaporation Capacity (DL41) | Max 3000mL/h |
| Temperature Range (DL41) | 40C ~ 300C |
| Water Evaporation Capacity (GS310) | Max 2000mL/h |
| Power Supply | AC 200/230V, single phase |
| Dimensions (ADL310) | 580x 420 x 1075mm |
| Weight (ADL310) | Approx 70kg |
The maximum water evaporation capacity for the ADL310 model is approximately 1300mL/h.
Yes, by installing the optional GF22 attachment, the GA32 can function as a fluidized bed drying granulation device.
The DL41 model has a temperature regulation range from 40C to 300C.
Yes, the GS310 is specifically designed as a nitrogen-sealed circulation type spray dryer best suited for samples using organic solvents.
