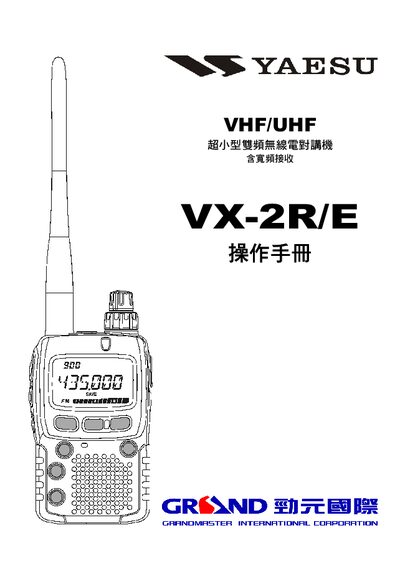

The Yaesu VX-2R/E handheld dual‑band radio operation manual provides setup, controls, and detailed specifications in Chinese.
This manual introduces the Yaesu VX-2R/E, a compact VHF/UHF dual‑band handheld transceiver. It covers the device’s hardware layout, control knobs, keyboard functions, LCD display, and optional accessories such as antennas and battery packs.
Detailed sections explain how to install accessories, connect a TNC interface, perform basic and advanced operations, configure scanning, memory channels, CTCSS/DCS, ARTS™, and power‑saving features, and provide the full electrical specifications for the unit. This manual is written in Chinese.
| Transmit power (430 MHz) | 1 W @ 3.7 V |
|---|---|
| Current consumption (receive) | 150 mA |
| Dimensions (W × H × D) | 47 × 81 × 23 mm |
| Weight | 132 g |
Press and hold the POWER switch on the left side of the front panel for about one second; the radio will emit two beeps when turned on and the same action turns it off.
Rotate the volume control knob clockwise to increase the audio level.
