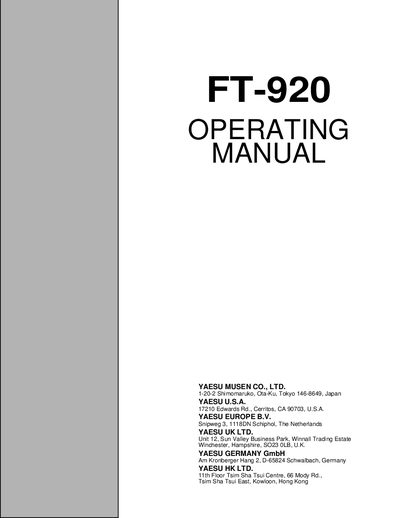

This manual provides detailed information on the operation and functions of the FT-920.
This manual covers the features, specifications, and proper operation of the Yaesu FT-920 amateur radio transceiver. It includes safety precautions, power requirements, antenna tuning, and detailed descriptions of the front and rear panel controls.
Key sections guide users through installation, DC power connections, antenna considerations, memory functions, CAT computer interface, and optional accessories. The document also provides technical specifications, troubleshooting tips, and regulatory compliance information.
| Receiving Frequency Range | 100 kHz – 30 MHz, 48 – 56 MHz |
|---|---|
| Transmitting Frequency Range | 160 m – 6 m amateur bands |
| Operating Temperature Range | -10 % – +50 °C |
| Frequency Accuracy | +10 ppm; +2 ppm with TCXO‑7 |
| Current Consumption (Tx 100 W) | 22 A |
The FT-920 operates from 13.5 VDC with negative ground and needs a power source capable of providing up to 20 A continuous current.
The FT-920 provides 99 regular memory channels, ten split‑frequency memories, five Quick Memory Bank (QMB) channels, and a “Ca.” channel for each band.
The transceiver can output up to 100 W of adjustable power on all amateur bands, with a 25 W carrier in AM mode.
