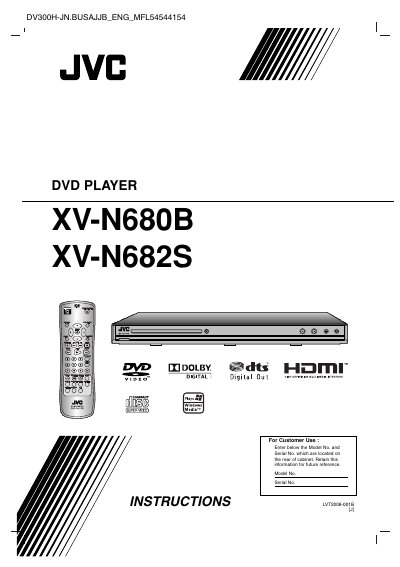

The user manual for XV N680B/N682S DVD players covers installation, operation, connections, safety and specifications.
This manual provides step‑by‑step instructions for installing and setting up the XV N680B and N682S DVD players, including safety warnings, power‑cord handling, and ventilation requirements. It describes the front‑panel controls, remote‑control functions, and how to configure video and audio connections such as HDMI, component, S‑Video and analog outputs.
The document also contains troubleshooting guidance, a full list of technical specifications (power, dimensions, output levels, laser type, frequency response, etc.), and warranty information for U.S. customers. It is intended for end users who need to operate, maintain, or service the DVD player safely.
| Power requirements | AC 120 V ~ 60 Hz |
|---|---|
| Power consumption | 9 W |
| Dimensions (W × H × D) | 430 mm × 39 mm × 192 mm (17 × 1.5 × 7.6 in) |
| Net weight | 1.5 kg (3.3 lb) |
| Operating temperature | 5 °C to 35 °C (41 °F to 95 °F) |
| Operating humidity | 5 % to 90 % |
| Video output (RCA) | 1.0 V (p‑p), 75 Ω, sync negative |
| HDMI output | Standard HDMI Type‑A connector |
| Audio output (RCA) | 2.0 Vrms (1 kHz, 0 dB), 600 Ω |
| Digital audio output (coaxial) | 0.5 V (p‑p), 75 Ω |
| Laser type | Semiconductor laser, wavelength 650 nm |
| Signal‑to‑noise ratio (analog out) | > 90 dB |
| Harmonic distortion | < 0.02 % |
| Dynamic range (DVD/CD) | > 95 dB |
The player requires AC 120 V at 60 Hz and consumes about 9 W of power.
