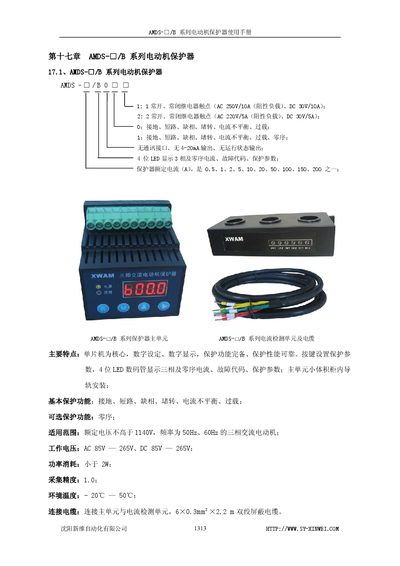

This manual covers the features, technical data, display functions, installation, and parameter settings for the Xinwei AMDS-□/B series motor protector.
The Xinwei AMDS-□/B series motor protector is a device designed to protect three-phase AC motors from various faults. It consists of a main unit and a current detection unit, utilizing a microcomputer core for digital setting and display. The device monitors motor current and triggers protection mechanisms for issues such as grounding, short circuits, phase loss, stalled rotation, current imbalance, and overload. This manual is written in Chinese.
| Rated Voltage | Not higher than 1140V |
|---|---|
| Frequency | 50Hz, 60Hz |
| Working Voltage | AC 85V — 265V, DC 85V — 265V |
| Power Consumption | Less than 2W |
| Collection Accuracy | 1.0 |
| Operating Temperature | -20℃ — 50℃ |
Press the reset key 'R' or power the protector back on to reset it.
The EE06 code indicates an overload fault.
