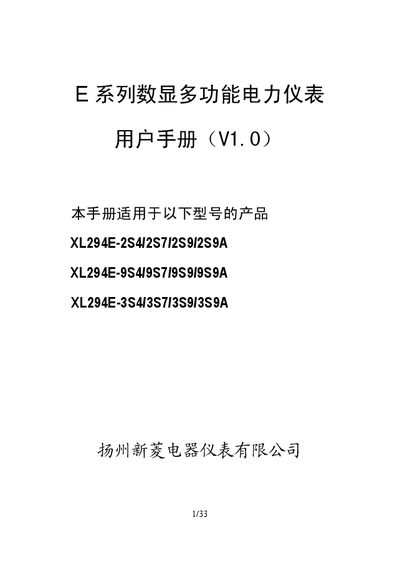

User manual for Xinling XL294E series multi‑function power meters covering installation, wiring, programming and specifications.
This manual provides detailed information for the XL294E series multi‑function power meters, including product overview, technical parameters, installation guidelines, wiring diagrams, menu operation, and communication settings. It is intended for professional installers and service technicians working with three‑phase power monitoring and energy measurement.
The document also includes a troubleshooting section, Modbus‑RTU address tables, and programming registers to help configure the meters for various applications such as industrial automation, building energy management, and sub‑station monitoring. This manual is written in Chinese.
| Accuracy class (U, I, P, Q, PF) | 0.5 level |
|---|---|
| Active energy accuracy | 0.5S |
