The HG-RE04 Satellite Navigation Development Platform by Xingyuan Beidou provides GPS/BeiDou receiver code, hardware design files, and detailed…
The HG-RE04 is a satellite navigation development platform that offers combined GPS/BeiDou positioning, source code for the correlator (HG-CORR V1.3) and DSP processor (HG-DSPGPS V1.3), and a complete hardware design based on a TMS320C6747 DSP and EP4CE115 FPGA. It includes a 1U aluminum chassis, internal battery, and multiple interfaces such as JTAG, USB, serial ports, and RF connectors.

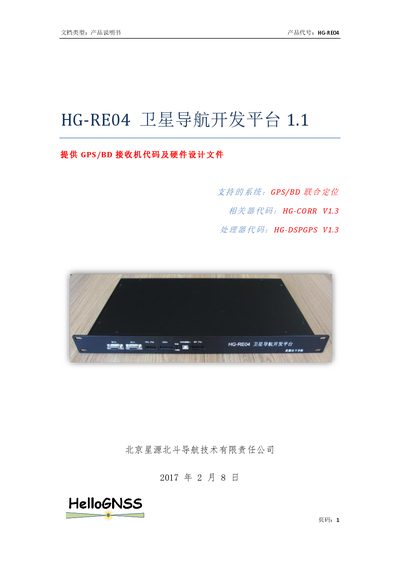

The platform supplies power via 220 V, USB, or an internal 5000 mAh battery, provides a +5 V/2 A supply for the receiver, and supports the MAX2769 GPS RF chip. Technical performance includes cold‑start under 45 s, hot‑start under 8 s, horizontal accuracy of 10 m CEP, vertical accuracy of 15 m CEP, and speed accuracy of 0.2 m/s. Documentation includes hardware schematics, software specifications, test software, and a packing list. This manual is written in Chinese.
| Cold start time | <45 s |
|---|---|
| Horizontal positioning accuracy | 10 m CEP |
| Vertical positioning accuracy | 15 m CEP |
| Speed accuracy | 0.2 m/s |
| Supported GPS RF chip | MAX2769 |
| Power supply voltage/current | +5 V, ≤2 A |
| Battery capacity | 5000 mAh (≈12 h operation) |
| Interface ports | DSP JTAG, FPGA JTAG, 2 serial, 2 RF |
| Power input options | 220 V, USB, internal battery |
It supports combined GPS and BeiDou (BD) positioning.
The cold‑start time is less than 45 seconds.
The platform can be powered from 220 V AC, an external USB source, or its internal 5000 mAh battery.
Horizontal accuracy is 10 m CEP, vertical accuracy is 15 m CEP, and speed accuracy is 0.2 m/s.
