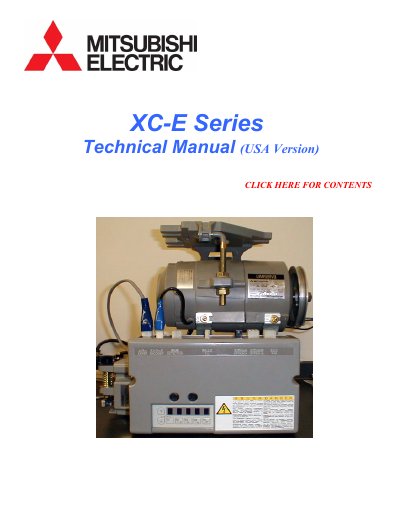

XC-E Series (USA Version) Technical Manual

About this manual

The XC-E Series (USA Version) Technical Manual serves as a comprehensive guide for operating and programming the XC-E industrial sewing machine controller. It details how to enter various program modes (P, A, B, C, D, E, F, G, H, J, Q, R, S, 1-3, K) and adjust settings for different machine types, including Mitsubishi and other lockstitch machines.

The document covers essential operational procedures such as adjusting speed, setting tacking parameters, and configuring input/output signals. It also includes specific troubleshooting sections for error codes, fuse replacement, and power supply modifications, along with wiring layouts for connectors like the needle cooler output and sensor.

What's inside

• How to Enter the Various Program Modes
• Panel Key Functions
• How to Enter the Mode for Mitsubishi Machines
• Backtack Settings
• Stitch Count Settings
• How to Enter into the Mode for Other Lockstitch Machines
• How to Enter into the Mode for Chainstitch Machines
• Most Commonly Used Functions
• Fuses
• Troubleshooting

Specifications

Frequently asked questions

How do I return to the normal mode from a program mode?

Press the DOWN ARROW and UP ARROW momentarily.

What happens if input S7 is turned ON while the sewing machine is running?

Backstitching (reverse feed) will start.
