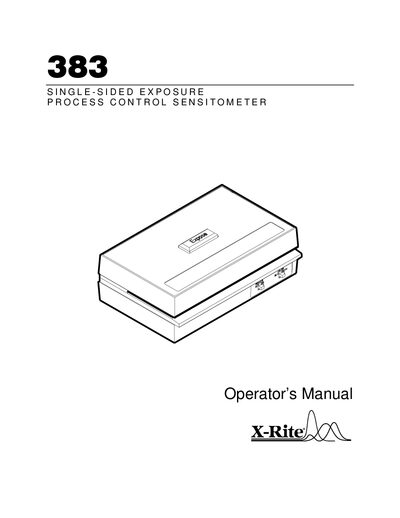

The X‑Rite 383 Sensitometer Operator’s Manual provides specifications, setup, operation, maintenance, and warranty information for the battery‑operated…
The X‑Rite 383 Sensitometer is a battery‑operated, dual‑color, single‑sided exposure device used for quality control of cine and x‑ray processing systems. It delivers repeatable stepped exposures with blue or green light to match intensifying screens.
This manual covers getting started, power connection, color and exposure settings, film exposure procedures, routine maintenance, battery replacement, applications, processor control monitoring, and troubleshooting. Warranty terms and service information are also included.
| Unit to Unit Repeatability | ±0.02 Log Exposure |
|---|---|
| Exposure Stability | ±0.02 Log Exposure per year |
| Temperature Sensitivity | ±0.02 Log Exposure from 59°‑86°F |
| Electrical Requirement | 9 V Alkaline battery |
| Light Modulation | 21‑Step Wedge, 0.15D per step |
| Blue Color Peak Wavelength | 460 nm ±0.10 nm |
| Green Color Peak Wavelength | 510 nm ±0.10 nm |
| Recycle Time | 2 seconds |
| Size | 8.5" W × 5.25" D × 3.0" H |
| Weight | 2 ½ lb |
It uses a 9 V alkaline battery.
The battery provides approximately one year of operation.
The device offers a 21‑step wedge, each step equal to 0.15 D.
