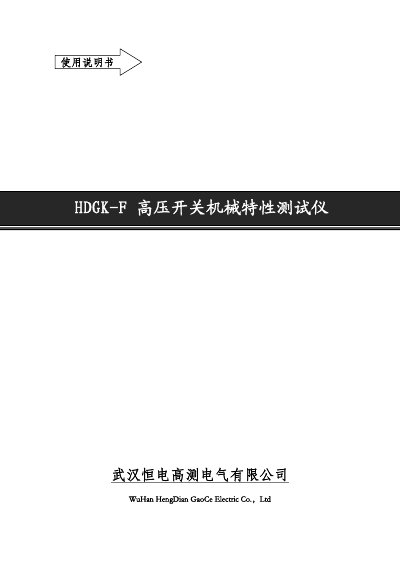

This manual covers the operation, features, technical specifications, and maintenance of the HDGK-F High Voltage Switch Mechanical Characteristic Tester for…
The HDGK-F High Voltage Switch Mechanical Characteristic Tester is designed to measure mechanical dynamic parameters of various high-voltage circuit breakers, including oil, vacuum, and SF6 types. It can accurately measure parameters such as closing/opening time, bounce time, travel distance, and speed, providing dynamic analysis for power system safety. This manual is written in Chinese.
| Operating Temperature | -10°C ~ 40°C |
|---|---|
| Relative Humidity | ≤ 85% |
| Time Test Range | 1~499.9ms |
| Time Resolution | 0.01ms |
| Time Accuracy | ≤ 0.1ms |
| Speed Test Range | 15m/s |
| Speed Accuracy | ±1% reading + 2 digits |
| Travel Test Range | Unlimited |
| Travel Resolution | 0.01mm |
| Travel Accuracy | ±1% reading + 2 digits |
| DC Power Range | 25-265V/10A |
| Dimensions (Host) | 440×300×150mm |
It is suitable for oil, vacuum, and SF6 high-voltage circuit breakers within a voltage level of 500KV.
The time resolution is 0.01ms.
The speed test range is up to 15m/s.
The instrument enjoys an 18-month warranty period.
