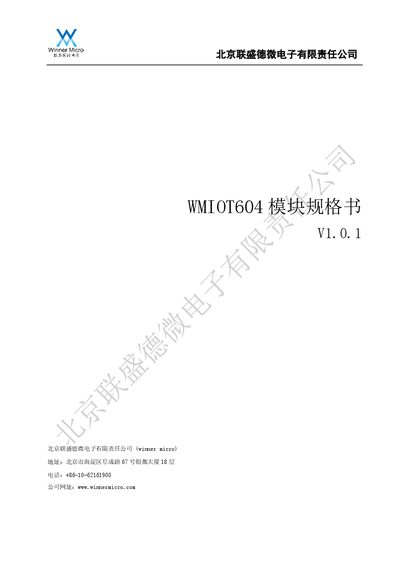

This datasheet describes the Winner Micro WMIOT604, a compact embedded Wi-Fi module based on the W600 SoC for IoT applications.
The Winner Micro WMIOT604 is an embedded Wi-Fi reference design module built around the W600 SoC. It features a postage stamp-style interface with 1.5mm pitch and includes PCB-mounted antennas, making it suitable for smart home appliances, industrial control, and other IoT applications.
The module supports IEEE802.11 b/g/n standards with frequencies up to 2.4835 GHz and data rates up to 150Mbps. It provides various hardware interfaces including UART (up to 2Mbps), SPI (up to 50MHz), GPIO, PWM, I²C, and I²S. The operating voltage range is 3.0V to 3.6V. This manual is written in Chinese.
| Frequency Range | 2.4~2.4835 GHz |
|---|---|
| Max Data Rate | 150Mbps |
| Operating Voltage | 3.0V – 3.6V |
| Max UART Rate | 2Mbps |
| Max SPI Clock | 50MHz |
| Operating Temperature | -40~+85℃ |
It supports GB15629.11-2006 and IEEE802.11 b/g/e/i/d/k/r/s/w/n wireless standards.
The maximum output power for IEEE802.11n OFDM MCS7 is +10 dBm.
Yes, it supports online firmware upgrades.
