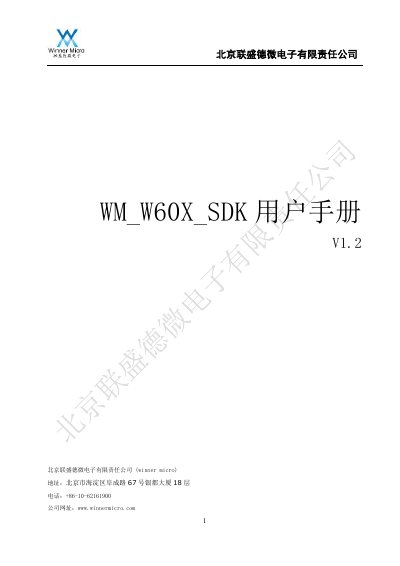

The Winner Micro W60X SDK User Manual describes the SDK features, architecture, compilation, flashing, debugging, and development tools for the W60X Wi‑Fi chip.
This manual introduces the W60X SDK, which combines the hardware drivers, RTOS, TCP/IP and Wi‑Fi stacks, and various application modules for embedded Wi‑Fi development. It also provides an overview of the W60X chip, including its Cortex‑M3 core, memory, and integrated radio.
The document covers SDK usage instructions such as software architecture, compilation with KEIL or GCC, firmware flashing, debugging methods, and development tools. It also details memory usage, flash layout, user and system parameter management, and provides guidance for starting the SDK and writing application code. This manual is written in Chinese.
| CPU | Cortex‑M3, 80 MHz |
|---|---|
| SRAM | 288 KB |
| Flash | 1 MB |
| Radio | 2.4 GHz RF transceiver, IEEE 802.11 compliant |
| UART interfaces | 2 UARTs, 1200 bps–2 Mbps, RTS/CTS |
| Power supply | 3.3 V single supply |
The W60X chip integrates a Cortex‑M3 processor running at 80 MHz.
It includes 288 KB of SRAM and 1 MB of flash memory.
The chip provides two UART interfaces (1200 bps–2 Mbps, RTS/CTS), an I2C controller (100/400 kbps), and high‑speed SPI interfaces.
