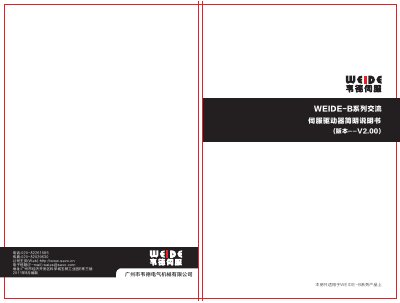

Brief user and installation guide for the WEIDE‑B series AC servo drive, covering specifications, wiring, operation, parameters and alarms.
The WEIDE‑B series AC servo drive manual provides safety instructions, installation requirements, wiring diagrams and detailed parameter settings for the drive and compatible servo motors. It includes warnings, grounding guidelines, and recommended environmental conditions for reliable operation.
The document also lists technical specifications, alarm codes, and troubleshooting steps, helping users configure the drive, set torque limits, and integrate it with control systems in industrial automation applications. This manual is written in Chinese.
| Input voltage | AC 220V ±15% (50/60 Hz) |
|---|---|
| Maximum power (built‑in brake resistor) | ≤ 1.0 kW |
The installation environment must be free of moisture, corrosive gases and flammable gases.
Connect the ground terminal to PE with a resistance below 100 Ω.
Ensure the emergency stop device is ready and do not dismantle the driver or motor while power is applied.
