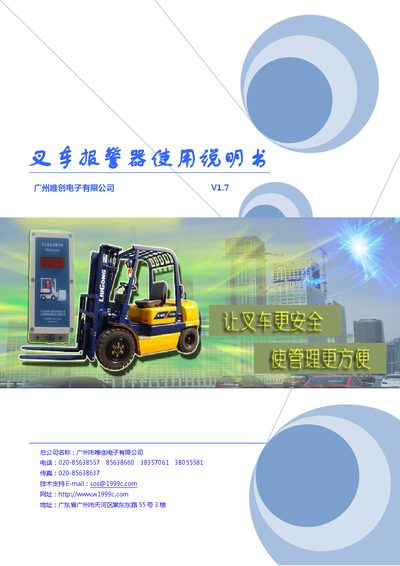

Weichuang Forklift Alarm User Manual V1.7

About this manual

The Weichuang V1.7 forklift alarm provides real‑time speed monitoring, audible and visual warnings, and optional oil‑circuit control. It can be configured via a handheld remote, supports both metal‑probe and wireless sensors, and operates on 12‑24 V DC with a low 5 W power consumption.

The manual details product features, technical specifications, remote‑control functions, step‑by‑step setup (lock‑time, speed thresholds, volume, pulse and wheel‑diameter settings), installation guidelines, wiring diagrams, and troubleshooting procedures. This manual is written in Chinese.

What's inside

• Product Features
• Technical Parameters
• Remote Control Appearance and Functions
• Operation Settings
• Installation Guidelines
• Usage Precautions
• Wiring Method
• Version History

Specifications

Frequently asked questions

How can I unlock a locked alarm?

Press and hold the “6” key for 10 seconds while the alarm is locked; the alarm sound will stop and the system will unlock.

What are the voltage ranges for the main unit and the wireless sensor?

The main unit works on 12 V–24 V DC, while the wireless sensor operates on 3 V DC.
