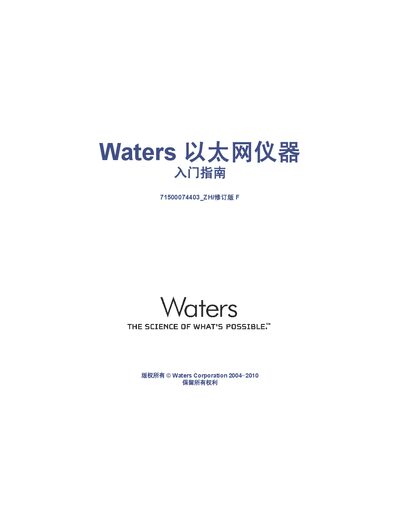

Waters 71500074403 Ethernet Instrument Quick Start Guide

About this manual

The guide provides step‑by‑step instructions for installing the Ethernet instrument hardware and software, setting up the instrument LAN card, and configuring network settings such as IP protocols and DHCP servers. It also covers cable installation, switch configuration, and optional wireless networking.

Additional sections describe how to rename network adapters, connect multiple instruments, and perform basic troubleshooting, including hardware issue checks and safety warnings specific to the instrument. This manual is written in Chinese.

What's inside

• Installation of Ethernet hardware and software
• Setup Waters Ethernet instrument
• Install second network (instrument LAN) card
• Configure network card and IP settings
• Cable installation and recommended cable type
• Network switch configuration (single and multiple)
• Wireless network setup
• Install instrument control software / driver
• Troubleshooting and common tips

Specifications

Frequently asked questions

How do I rename the second network card?

Open the Windows Control Panel, go to Network Connections, right‑click the second network card (often shown as “Local Connection 2”), choose Rename, and enter a new name such as “Instrument LAN”.

What type of Ethernet cable should be used for connections?

Use a shielded straight‑through Ethernet cable for all connections; a shielded crossover cable can be used for direct instrument‑to‑instrument links if needed.
