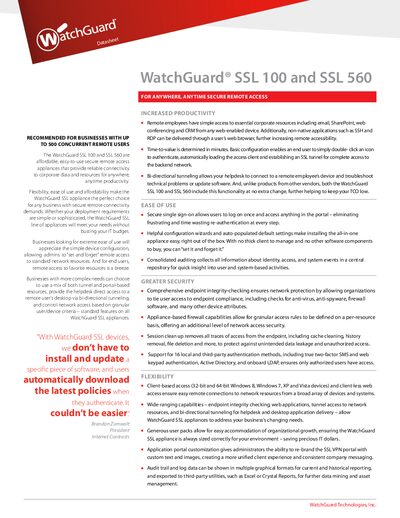

The WatchGuard SSL 100 and SSL 560 datasheet outlines features, specifications, and connectivity options for secure remote access appliances.
The SSL 100 and SSL 560 are all‑in‑one remote‑access appliances that provide secure SSL VPN connectivity for users on any web‑enabled device. They include bi‑directional tunneling, endpoint integrity checking, and a variety of authentication methods to protect corporate resources.
Key specifications include support for up to 100 concurrent users on the SSL 100 and 500 on the SSL 560, 100‑240 VAC autosensing power, rack‑mountable 1U kits, and multiple access options such as web browsers, thin clients, and the WatchGuard Access Client. The devices also offer extensive application support, including Citrix, Outlook, RDP, and SSH, and are covered by WatchGuard’s LiveSecurity support service.
| Concurrent users (SSL 100) | 100 |
|---|---|
| Concurrent users (SSL 560) | 500 |
| Product dimensions (SSL 100) | 1.75" x 16.75" x 14.25" (4.5 x 42.6 x 36.2 cm) |
| Product dimensions (SSL 560) | 1.75" x 17" x 11.25" (4.4 x 43.2 x 28.6 cm) |
| AC Power (both models) | 100‑240 VAC autosensing |
| Power consumption (SSL 100) | 60 W (U.S.) |
| Power consumption (SSL 560) | 50 W (max, U.S.) |
| Rack mountable | 1U rack mount kit (included) |
The SSL 100 is designed to support up to 100 concurrent remote users.
The SSL 560 accepts 100‑240 VAC autosensing power.
Supported methods include RADIUS, SecurID, LDAP, user certificates, and WatchGuard SSL Mobile Text, SSL Web, SSL Challenge, and SSL Password.
LiveSecurity includes hardware warranty with advance replacement, software updates, technical support, and security alerts.
