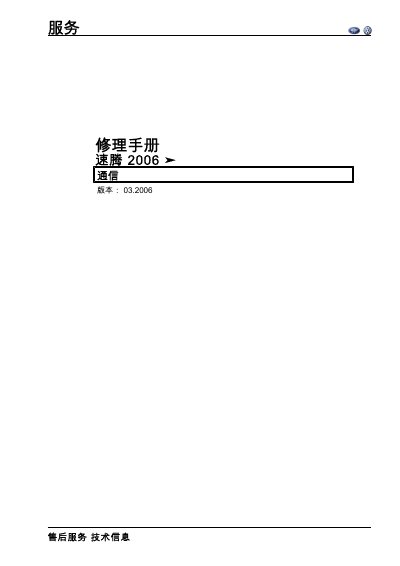

Repair manual for the 2006 Volkswagen Sagitar communication system covering radios, navigation, antenna, speakers and related components.
This service manual provides detailed instructions for diagnosing, disassembling, and reinstalling the communication equipment of the 2006 Volkswagen Sagitar. It includes step‑by‑step procedures, connector diagrams, and anti‑theft system handling for each radio and navigation unit.
The document also covers antenna wiring, speaker system layout, CD conversion box, digital audio controller, satellite radio, telephone equipment, multifunction steering wheel, compass module, and EMI mitigation measures. Diagnostic queries are performed with the VAS 5051 vehicle diagnostic system. This manual is written in Chinese.
| Radio output power | 4 × 20 W |
|---|---|
| Connector pin count (speaker output) | 8‑pin |
| Connector pin count (CAN & phone) | 8‑pin |
| Connector pin count (phone only) | 12‑pin |
The anti‑theft device must be deactivated before removing the radio, and the new unit’s code must be entered for the customer.
Use a 2.5 mm² red wire for positive supply and a 2.5 mm² brown wire for negative supply, each protected by a fuse.
