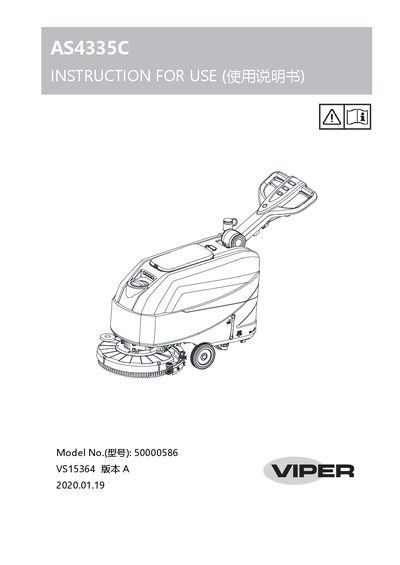

Instruction for use of the Viper AS4335C commercial floor‑scrubbing machine, covering safety, operation, maintenance and technical data.
The Viper AS4335C is a commercial floor‑scrubber designed for indoor use in hotels, schools, factories and other facilities. This manual provides operators and service technicians with safety guidelines, machine description, wiring diagrams, operating procedures and maintenance instructions.
Key sections include safety symbols, technical parameters, step‑by‑step installation of brushes and squeegees, troubleshooting tips and a scheduled maintenance table. All recommended spare parts must be original or approved by the authorized service center.
| Solution tank capacity | 35 L / 9.25 Gal |
|---|---|
| Recovery tank capacity | 35 L / 9.25 Gal |
| Machine length | 933 mm / 36.7 inches |
| Machine width (with squeegee) | 570 mm / 22.4 inches |
| Working width | 432 mm / 17 inches |
| Vacuum motor power | 300 W / 0.4 HP |
| Brush motor power | 250 W / 0.34 HP |
| IP protection class | IP24 |
| Supply voltage | AC 220‑240 V |
| Maximum climbing capacity | 2 % |
The machine operates on AC 220‑240 V.
It indicates a dangerous situation with risk of death for the operator.
The machine can climb a maximum grade of 2 %.
