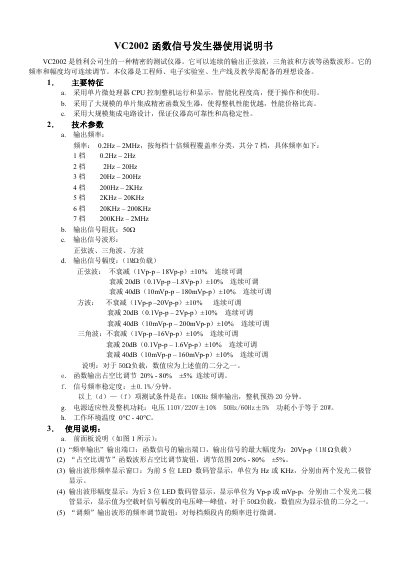

This manual covers the operation, features, and technical specifications of the Victory VC2002 function signal generator.
The Victory VC2002 is a precision test instrument produced by Victory Company. It is designed to continuously output sine wave, triangle wave, and square wave functions with adjustable frequency and amplitude. The device utilizes single-chip microprocessor control for high intelligence and ease of operation.
Key features include a large-scale integrated function generator ensuring superior performance and stability. The front panel includes controls for waveform selection (sine, square, triangle), frequency range selection across seven decades (0.2Hz to 2MHz), amplitude adjustment with attenuation options, and duty cycle regulation from 20% to 80%. The instrument also features LED displays for real-time monitoring of output frequency and voltage peak-to-peak values. This manual is written in Chinese.
The instrument can continuously output sine waves, triangular waves, and square waves.
The output frequency ranges from 0.2Hz to 2MHz.
The output signal impedance is 50Ω.
