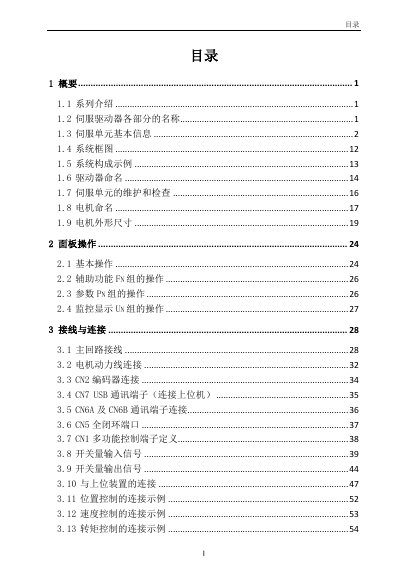

The Veichi SD700 Servo System Service Manual provides installation, wiring, operation, adjustment, and troubleshooting instructions for the high‑performance…
This manual covers the SD700 series servo system, describing its hardware layout, panel operation, wiring diagrams, and connection methods for motors, encoders, and USB communication. It includes detailed sections on system setup, trial run procedures, and normal operation modes such as position, speed, and torque control.
Additional chapters address adjustment techniques, auxiliary functions, fault codes, communication protocols, and upper‑level debugging tools like the built‑in digital oscilloscope. Safety guidelines, cooling recommendations, and factory‑reset procedures are also provided to ensure reliable long‑term use. This manual is written in Chinese.
| Speed loop bandwidth | 3 kHz |
|---|---|
| Supported fieldbus interfaces | EtherCAT, Profinet, MECHATROLINK‑II, MECHATROLINK‑III, CANopen, RS‑485 |
| Input voltage (single phase) | 200 V‑240 V 50/60 Hz |
| Protection class | IP20 |
| Operating temperature range | -5 °C to 55 °C |
The SD700 supports RS‑485 (standard), CANopen (optional), MECHATROLINK‑II, MECHATROLINK‑III, Profinet, EtherCAT, and USB communication via a micro‑USB port.
