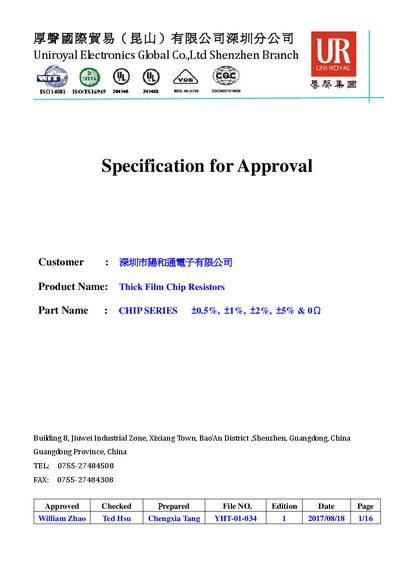

Uniroyal Chip Series Thick Film Chip Resistors Specification

Technical specification sheet for Uniroyal Thick Film Chip Resistors covering ratings, dimensions, marking, and performance.

Brand: UNI-ROYAL
Category: Other Electronics
Document type: Datasheet
Language: Chinese
Pages: 16
File format: PDF
File size: 596 KB
Published: 16 October, 2026
Updated: 16 October, 2026
MD5 checksum: BDA79B4ABA9510D8C0DED1BDBE8F37BB
PDF: Uniroyal Chip Series Thick Film Chip Resistors Specification PDF

About this manual

This document is a specification sheet for Uniroyal Thick Film Chip Resistors, covering various package sizes from 01005 to 2512. It details dimensional ratings, resistance ranges, and electrical characteristics such as working voltage and temperature coefficients. This manual is written in Chinese.

What's inside

Scope
Ratings & Dimension
Structure
Marking
Derating Curve
Performance Specification
Explanation of Part No. System
Ordering Procedure

Specifications

Temperature Coefficient (0402, 1Ω≤R≤10Ω)	±400PPM/°C

Frequently asked questions

What is the power rating for a 0603 resistor?

The power rating for a 0603 resistor is 1/10W.

How is the resistance value marked for a 0603 resistor in the E-96 series?

It uses a 3-digit code where the first two digits are significant figures and the third is a multiplier code.
