Uniop MD02R Series Display Panel Technical Paper

About this manual

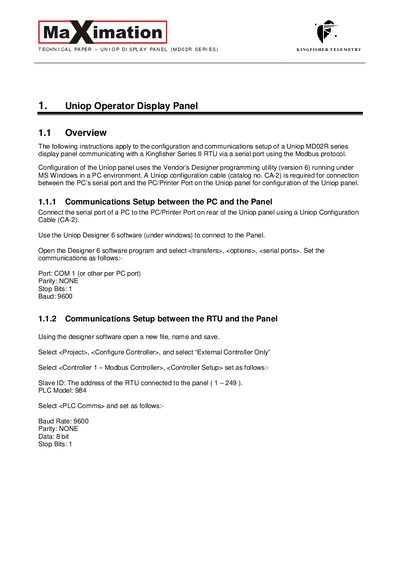

This technical paper provides instructions for the configuration and communication setup of a Uniop MD02R series display panel communicating with a Kingfisher Series II RTU via a serial port using the Modbus protocol. Configuration is performed using the Vendor's Designer programming utility (version 6) running under MS Windows on a PC, requiring a Uniop configuration cable (catalog no. CA-2) for connection.

What's inside

• Overview
• Communications Setup between the PC and the Panel
• Communications Setup between the RTU and the Panel
• Configuring a Uniop panel
• Uploading and Downloading Configurations
• Licence

Frequently asked questions

What software is required to configure the Uniop MD02R Series display panel?

Configuration requires the Vendor's Designer programming utility, version 6, running under MS Windows.

Which cable is needed to connect a PC to the Uniop panel for configuration?

A Uniop configuration cable with catalog number CA -2 connects the PC serial port to the panel's PC/Printer Port.

How do you put the Uniop panel into configuration mode?

Press and hold down the 'ENTER' key in the bottom right hand corner of the Panel until the setup menu appears.
